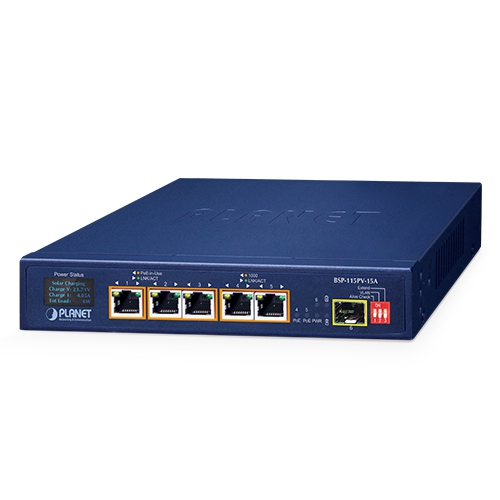

BSP-115PV-15A 5-Port 802.3at PoE Solar PoE Switch with 1-Port 1000X SFP and LCD Display

Hybrid Solar PoE Switch with Display Industry-leading Integration of PoE Technology and Renewable Power System PLANET’s newly-launched Renewable Energy Industrial 802.3at PoE Ethernet Switch, the BSP-115PV-15A, can be charged by the inexhaustible and natural source of energy, such as solar, wind and hydroelectric power to conserve energy so as to economically power these remote IP cameras and wireless APs. The BSP-115PV-15A is equipped with 5 10/100/1000BASE-T copper ports supporting 802.3at PoE injector function, a total PoE power budget of up to 120 watts and 1 extra 100/1000BASE-X SFP fiber port especially used for such expansive applications as dams, forests, deserts, national parks, nature/animal protection areas and highways. It is designed to efficiently handle power distribution for a versatile array of connected devices which meet the Environmental, Social, and Governance (ESG) principles. Leveraging cutting-edge IP-based technology, PLANET has transformed conventional Power Over Ethernet (PoE) into genuine networking devices that align with sustainable and responsible business practices. Zero-Carbon and Stable Power Supply The 12V/24V lithium, lead-acid or lithium iron battery gets recharged by way of the BSP-115PV-15A where solar power is sourced. Thus, the BSP-115PV-15A will keep powering PD like wireless PoE AP without a cable and a wired camera connected to its port with a UTP cable. Its zero-carbon feature is made possible as the energy the unit gets is renewable. Most importantly, the operation of outdoor wireless IP-based surveillance can be continued into the night as the battery is charged during the day. Smart Battery Management The BSP-115PV-15A features the following special power management functions: Current battery usage status by percentage Over budget PoE port disconnection protection Smart and Intuitive LCD Monitoring As the front panel of the BSP-115PV-15A provides an intuitive panel, you can check the current solar energy and battery statuses on the BSP-115PV-15A LCD screen. This easy operation can enhance the energy management efficiency of renewable PoE switches as the following special status functions are included: Displays solar input voltage and current power Displays battery voltage and current power Displays PoE current power Displays battery remaining and remaining charging time Displays temperature and humidity information Intelligent Powered Device Alive Check The BSP-115 Series can monitor connected PD status in real time via PD alive check function. Once the PD stops working and responding, the BSP-115 Series will resume the PoE power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden. 802.3at PoE Power and Ethernet Data Transmission Distance Extension Its DIP switch can set the system to extend mode. In addition, the BSP-115PV-15A is equipped with VLAN technology and operates on a per-port basis at 10Mbps duplex operation. It can also support 21.2-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the BSP-115 series provides an additional solution for 802.3at PoE distance extension, thus saving the cost of Ethernet cable installation. Multiple Battery Options for All Market Requirements The BSP-115 Series features a variety of battery options, including lead-acid, lithium, and lithium iron batteries. Lead-acid battery offers a cost-effective option while lithium battery offers higher energy density and lightweight design, and lithium-iron battery combines high energy efficiency with durability. The renewable PoE switch provides a flexible, reliable solution that ensures all applications can continue to run without a glitch. Temperature Sensor for Battery Protection The BSP-115 series is equipped with a temperature sensor for battery protection. When the sensor detects the battery temperature reaching above 70~75 degrees C, the PoE high-current power supply will be stopped to cool down and protect the battery. The BSP-115PV-15A also provides humidity sensing function, allowing users to easily grasp environmental humidity information.
