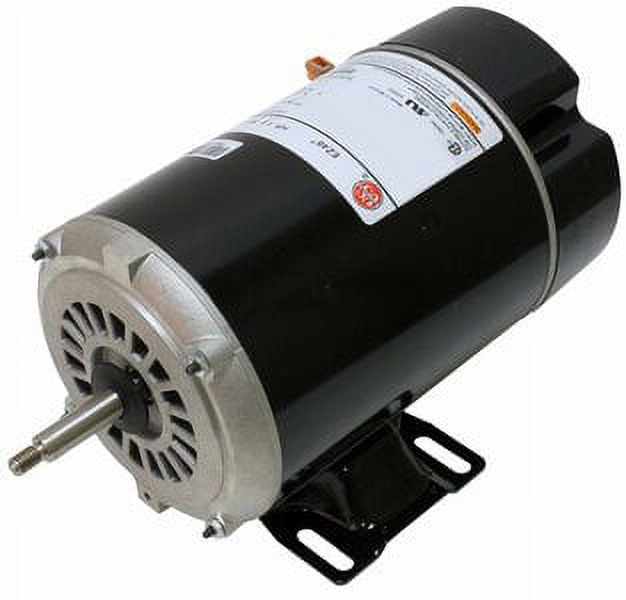

1.5 hp 3450/1725 RPM 48Y Frame 230V 2-Speed Pool & Spa Electric Motor US Electric Motor # AGH15FL2CS

Auto Overload Protection 1.5 HP 3450/1725 RPM, 8.2/2.4 amps, 230V 60hz.; 2-Speed Auto Overload Protection Non-Reversible -CCW Facing the Shaft; Ball Bearings 48Y Frame; Thru-Bolt mount -Rigid Base Stainless Steel Shaft; One Year Manufacture Warranty Above ground swimming pool and spa motors. These are called Thru-Bolt mount motors as the pump mounts to the face of the motor with the motor thru bolts. 48Y frame motors thru bolt dimension is 5 1/8″ on center measured across the shaft. Shaft is 1/2″ diameter with threads on end. Motor has flat-rigid base welded to motor case. Wiring connection diagram on motor name plate. These motors are found on the Hayward Powerflo, Waterway, Aquaflo, Dynamo and many other above ground pool and spa pumps. 1 Year Manufacture Warranty. Century Equivalent BN34, BN34V1.
